GONEO

EV Charger Safe Charging Station

Current specification
Charging power
Networking method

Description
Voltage：220-240Vac±10% (operable at 120V)
Frequency：50 / 60 Hz
Charging standard：IEC 62955; IEC61851-1Ed3; IEC 60068-2-11:2021 (without power for 96h at
storage state)；
Protection function：Basic protections: overcurrent, overvoltage, undervoltage, overtemperature,
leakage, grounding, lightning, short-circuit protections
Protection standard：AC30mA+DC6mA
Communication protocols：OCPP1.6J+
Connection mode：WIFI Bluetooth 4G Ethernet
Power feed method/unlocking method：Plug-and-charge, APP+RFID
Interaction：APP+ light language/screen (with screen + without screen)
RFID function：Supported
APP function：
①Charging completion reminder and notification for failed gun insertion in
reservation mode
②Calculate the amount of electricity for each charge
③Monthly charging data and comparisons (bar chart)
Extended function：PV charging and storage + smart electric meter can be integrated in the
future
IP rating：IP66
Operating altitude,temperature, and humidity：Altitude <2000m; temperature -30° C~+50° C; humidity 5 %~95%
Storage temperature：-40°C ～ +60°C

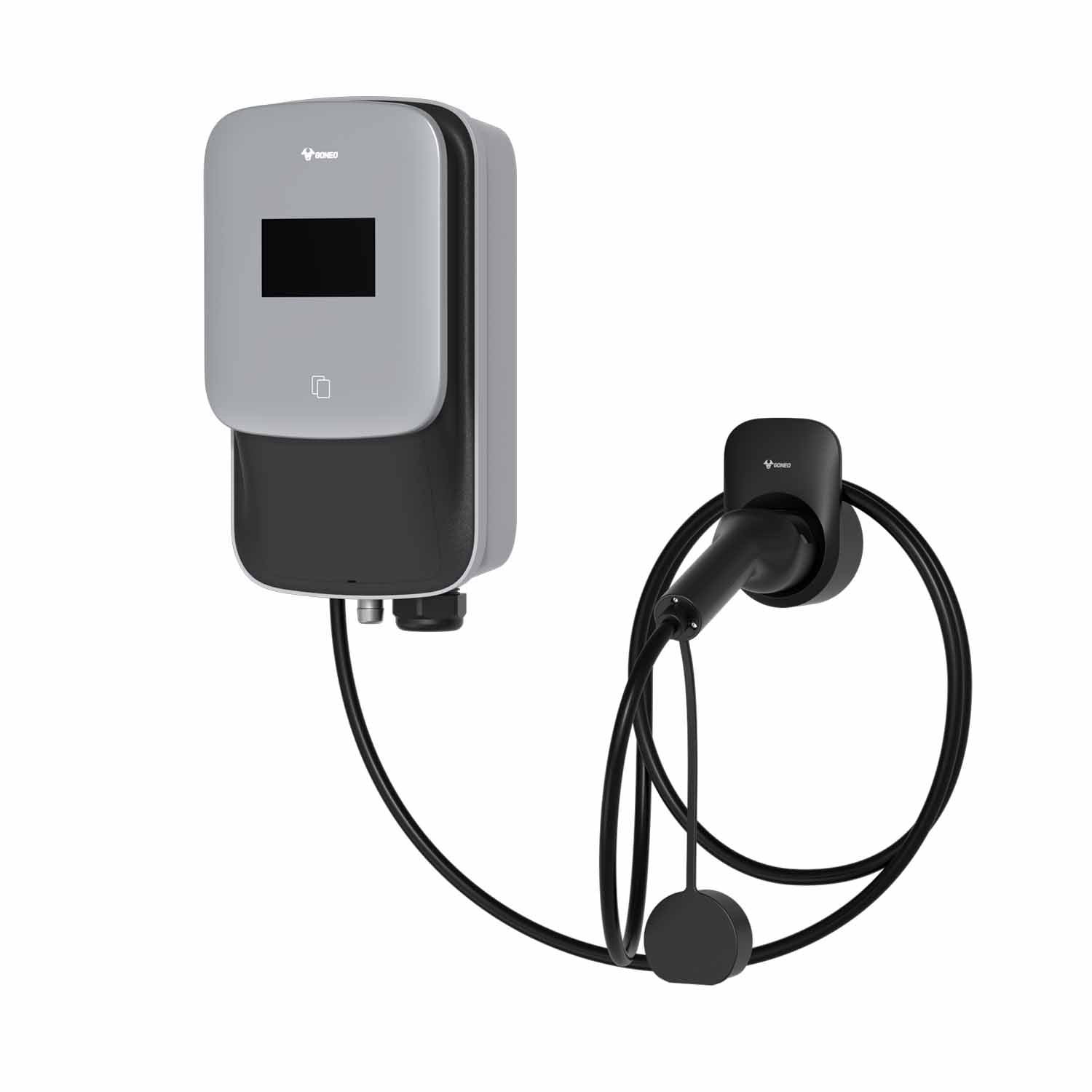

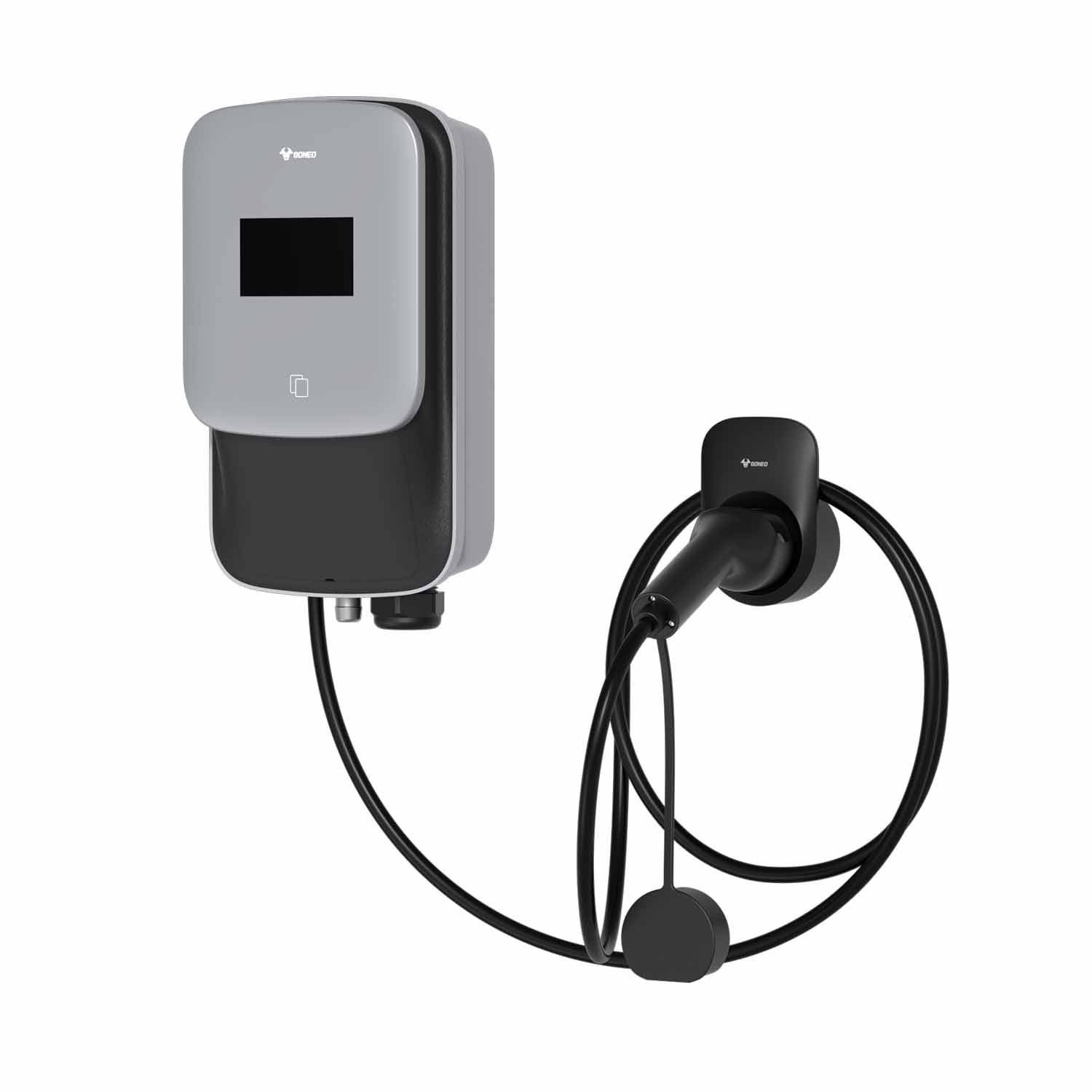

Installation mode：Wall mount/pole mount (target: installer can complete the installation
within 20 minutes after training, installation video available)
Cable length：5m
Certifications：CB, TUV-CE, RoHS, REACH, IP, IK10
